For new and existing
Distribution and
Sub-Transmission lines
Built for distribution designers who need fast, practical design — not heavyweight transmission modelling systems
The tools needed for design
Define route → generate profile → adjust poles → assess sags and clearances → iterate quickly
Line Profiling
Enter ground line, poles and conductors. Check sags and clearances. Add pole top equipment. Export to DXF or PDF.
Pole Loadings
Derived from a Profile project, or enter the details manually. Working Stress or Limit State methods available. Check tensions.
Additional functions
Assess conductor spacing, generate stringing tables. All in one place.
Conductor Library
Comprehensive database based on relevant standards. User editable.
Project Options
User definable settings, allowing compliance with local standards and regulations.
Compliance
Produces designs compliant with AS/NZS7000:2016 and most other standards.
Why choose Poles ‘n’ Wires?
Poles ‘n’ Wires is designed for distribution lines, allowing for a faster workflow by not needing to create complex models

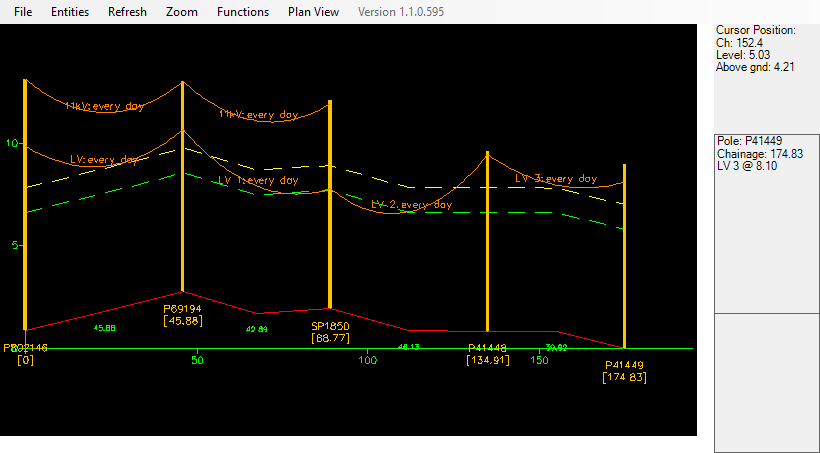

Line Profiler
- Import ground line survey data
- Or use data you collect yourself
- Check sags and clearances

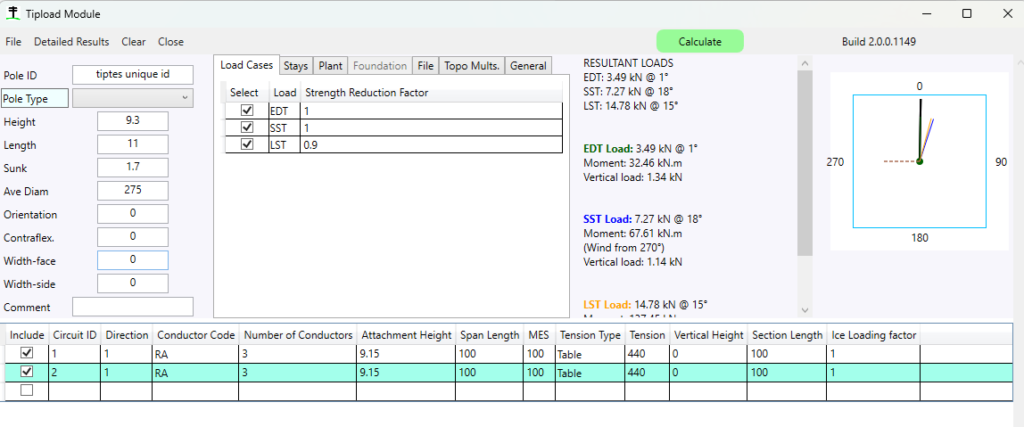

Tipload Module
- Enter pole parameters manually or use poles in the database
- Add conductors, pole top equipment or stays
- Check loadings and generate reports
